The RF-RSA-S1 is a specialized, component-level Plug & Play CNC Rack Retrofit Kit engineered exclusively for replacing old, broken, or end-of-life Cybelec ModEva series CNC modules (including ModEva 10, ModEva 12S, ModEva 15S, and ModEva 15ST).
Crucial Note for Plant Engineers: This kit does NOT modify or replace your main electrical panel. It is designed strictly to replace the internal CNC rack/module inside the controller cabinet using the exact same original sockets and pin-to-pin connections. No rewiring, no cable cutting, and no panel building are required.

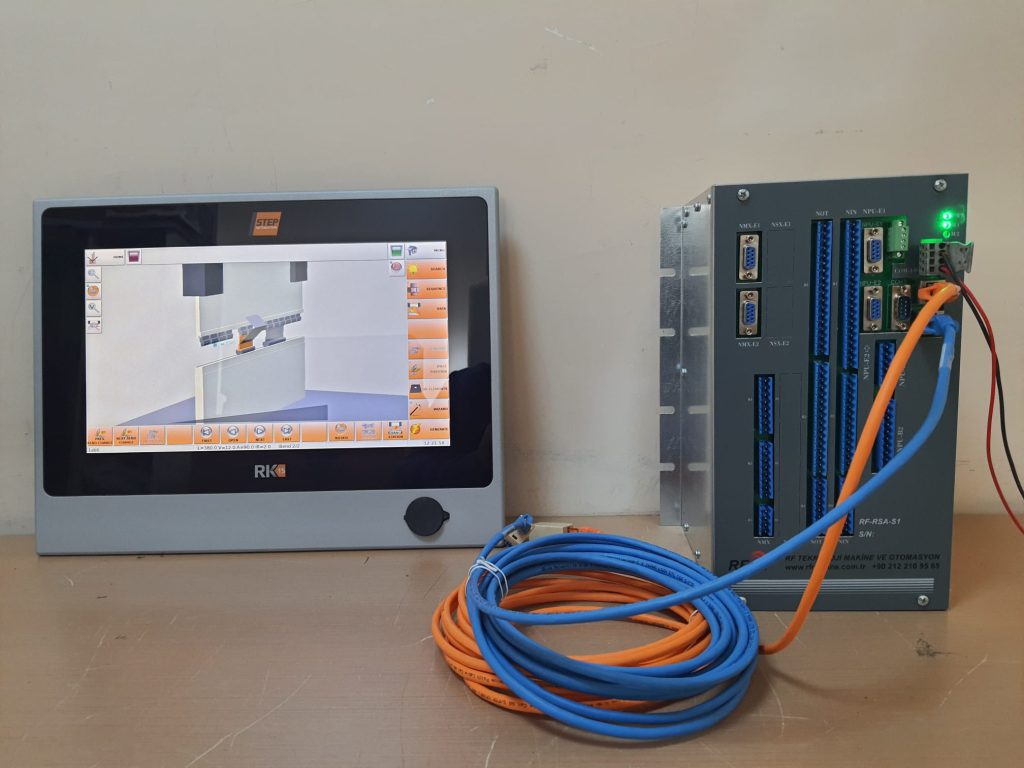

- Drop-In Replacement CNC Rack Module: Equipped with a brand-new touch screen interface and configured for Cybelec applications.
- Factory-Matched Connector Board: Fully integrated board utilizing the original Cybelec plug-in footprints.
- Remote Calibration Software: Pre-installed utilities for instant secure remote connection with our engineering team.
- 100% Sockets Match (No Panel Modification): The kit is manufactured with identical ports, terminals, and connectors to fit perfectly into your existing Cybelec ModEva architecture. You simply unplug the old CNC rack, slide in the RF-RSA-S1 module, and plug the original cables right back in.
- Exclusive Cybelec Architecture: This solution is custom-tailored specifically to communicate with the existing PLINK and hardware interfaces of Cybelec ModEva systems. It does not support other brands like Delem, making it a highly optimized, precise alternative.
- Zero Technical Risk: Because the original electrical schematics and main cabinet remain completely untouched, there is no risk of wiring mistakes or electrical faults.
- 100% Remote Support Compatible: Perfect for international clients. Your local maintenance technician can easily complete the module swap in minutes, and our senior team handles the fine-tuning and axis calibration remotely via the internet.
📊 RF-RSA-S1 Technical Specifications Matrix
| Features & Parameters | Product Details & Installation Type |
| Compatible Controller Brand | Cybelec Only (Specialized Architecture) |
| Compatible Controller Models | ModEva 10, ModEva 12S, ModEva 15S, ModEva 15ST |
| Installation Impact | CNC Rack Module Swap Only (Main Electrical Panel Remains Untouched) |
| Connection Style | Pin-to-pin original matching sockets (True Plug & Play) |
| Worldwide Shipping | 3–5 Business Days via Express Cargo (DHL / FedEx / TNT) |
| Warranty | 24 Months Full Warranty on the replacement CNC module |

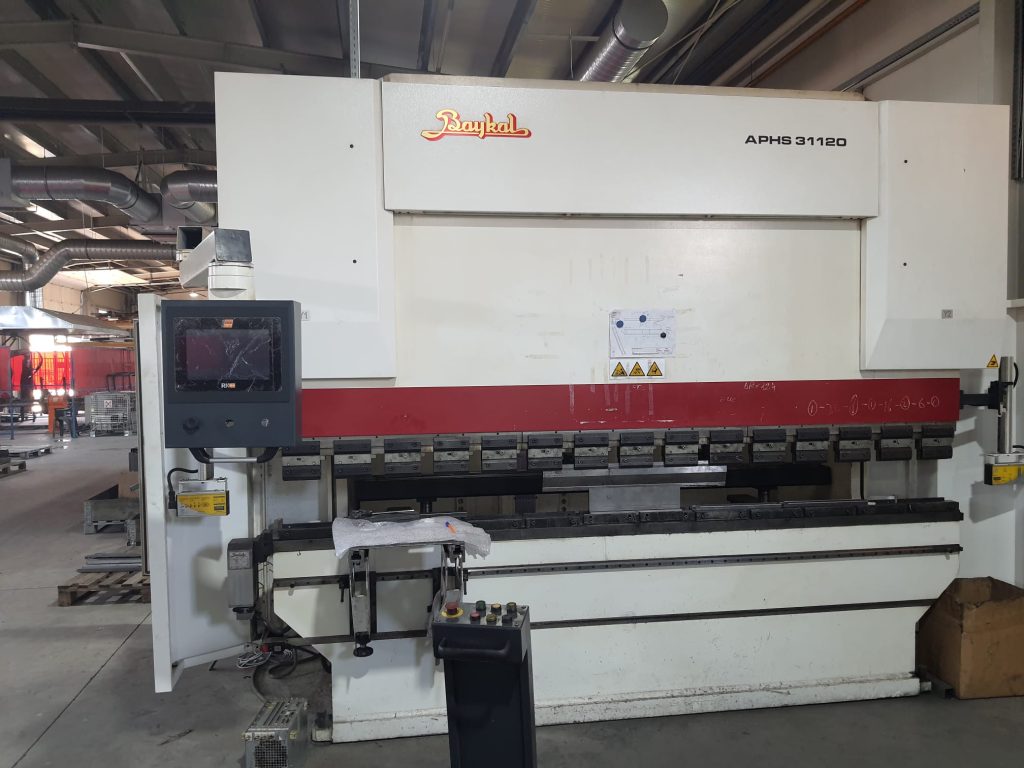

It can be used for 4 and 6 axis pressbrakes. Example configurations:
- 4 axes: Y1, Y2, X, R
- 6 axes: Y1, Y2, X, R, Z1, Z2
This kit is developed for specially to reduce the needs of technical expertize. Anyone who is able to use basic hand tools like screw driver can be able to do this replacement. Because the kit has the same connectors so, it is really like you replace the old controller with a newer one.
The kit will be preprogrammed according to your old contoller’s parameters. It is enough that you send us parameter backup of old controllers. In addition to parameters it is possible that we can program tools in advance if you share with us which tools you have.
If you don’t have the parameters backup of old controller it is not a big problem. We are able to prepare an important part of new controllers parameters according to electrical schematics. For other parameters we are able to program them remotely with co-operation with your tech or operator.
- Fast retrofit, less down time
- Doesn’t require an expert tech visit – economical solution
- Electrical diagram will not change – original documents will be used for future services
- 1 year warranty
Question: Do we need to rewrite our main electrical panel or change the relays to install this kit?
Answer: No, absolutely not. The RF-RSA-S1 kit leaves your machine’s electrical panel 100% untouched. It is a modular component replacement that strictly swaps out the old Cybelec CNC rack. The electrical schematic remains exactly the same as the day your machine was manufactured.
Question: Can a regular factory electrician complete this swap without specialized CNC training?
Answer: Yes. Since there is no cable work, no soldering, and no parameter rebuilding from scratch, it requires no high technical skills. It is as simple as replacing a modular Controller component. Once the original sockets are plugged in, we assist you online for the final test.
Question: How long does the shipping take, and do you provide customs support?
Answer: We ship globally via express air cargo (DHL, FedEx, or TNT). Delivery to Europe takes 2–3 business days, while shipping to North/South America and the Middle East takes 3–5 business days. We provide all necessary commercial invoices and HS codes for smooth customs clearance.
- 12 or 15 inch capasitive touch screen possible to use with glove
- 3D Profile Editor and 3D Simulation with the search of best bending sequence function
- DXF tool import from tool manufacturers data
- Suits for every level of users who prefer only manual programming or graphical programming
- 3D standard Editor and 3D part import is available under option with extra payment (optional and available only Rock15 programming console)
- Offline PC based program can communicate directly with controller so you can program your part in office and send it to controller via network or usb memory. (*) offline software is optional.
Order Codes:

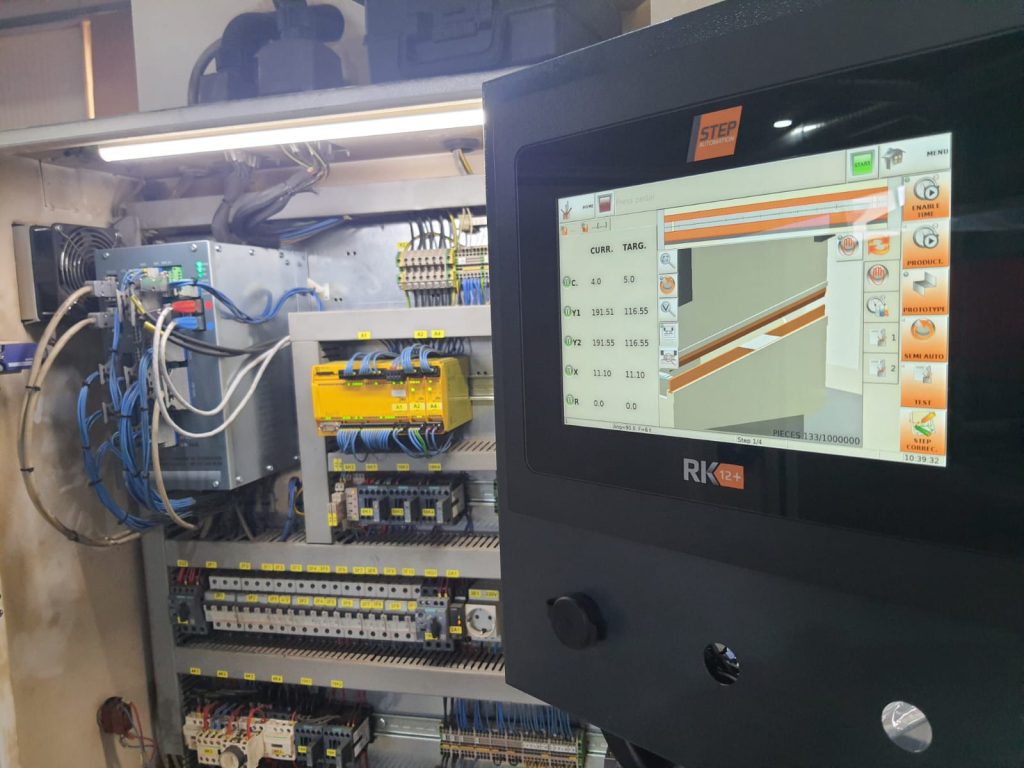

RF-RSA-S1-12-4x: 12” touch screen including RK12+ Controller 4 axis (Y1,Y2,X,R)
RF-RSA-S1-15-4x: 15” touch screen including RK15 Controller 4 axis (Y1,Y2,X,R)
RF-RSA-S1-12-6x: 12” touch screen including RK12+ Controller 6 axis (Y1,Y2,X,R,Z1,Z2)
RF-RSA-S1-15-6x: 15” touch screen including RK15 Controller 6 axis (Y1,Y2,X,R,Z1,Z2)
